Laser Engraving Gold: A Quick Guide

Laser engraving gold is a precise way to add detailed designs, text, or patterns directly onto gold using a focused beam of light. It creates sharp, permanent marks without affecting the metal’s structure, making it ideal for rings, pendants, and other fine jewelry.

From personal messages inside wedding bands to logos on luxury pieces, laser engraving on gold offers clean, consistent results with excellent control.

In this guide, you’ll learn how laser engraving gold works, the best machines for the job, recommended settings, and practical tips to achieve professional-quality results.

What Is Laser Engraving Gold?

Laser engraving gold is a process that uses a focused beam of light to remove a thin surface layer and create a permanent design. It’s a non-contact method, meaning no physical tools come into contact with the metal during engraving. This reduces mechanical stress and allows for extremely fine detail.

To fully appreciate its precision and efficiency, it is important to compare laser engraving with traditional engraving methods.

Laser Engraving Gold vs Traditional Engraving

Feature	Laser Engraving	Traditional Engraving
Precision	High	Depends on skill
Speed	Fast	Slower
Repeatability	Excellent	Limited
Custom designs	Easy	Complex

How Does Gold React To A Laser?

Gold behaves differently from many other metals when exposed to laser energy, so understanding its properties is important.

Highly reflective to infrared light: Gold reflects much of the energy from standard infrared fiber lasers, which is why laser type and wavelength selection matter.
Better absorption at shorter wavelengths: Gold absorbs energy more efficiently in the green and UV regions, enabling cleaner, more controlled surface interactions.
Material removal through controlled heat: Laser energy causes tiny amounts of gold to melt or vaporize, resulting in precise surface ablation.
Pulsed lasers increase control: Short, high-intensity pulses help confine heat to a small area, reducing thermal spread and improving detail quality.
Proper calibration is essential: Balanced power, speed, and frequency settings prevent excessive melting while maintaining sharp engraving definition.

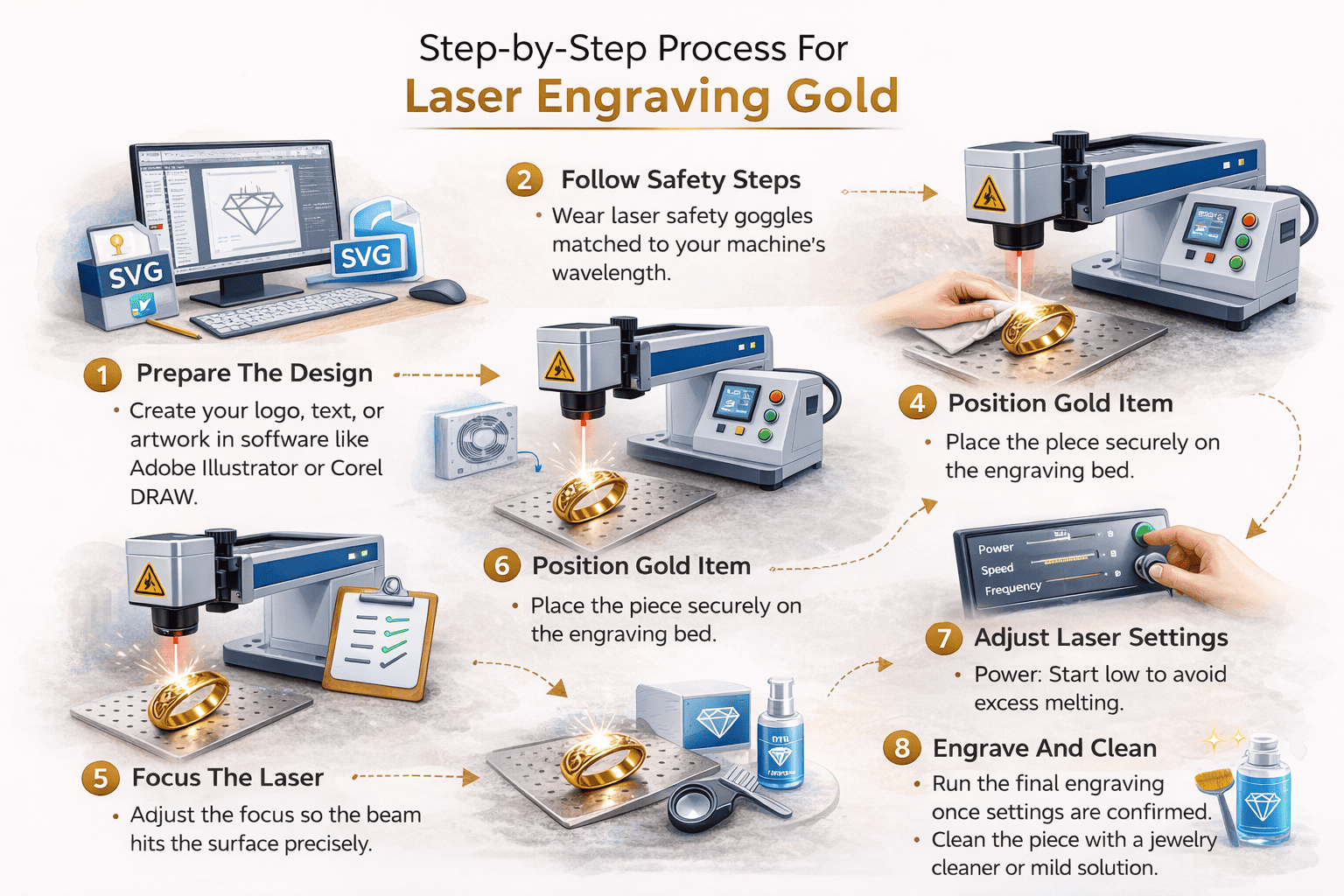

Step-By-Step Process For Laser Engraving Gold

To laser engrave gold, you need proper design setup, correct machine calibration, and careful testing. Here’s the process broken down clearly.

1. Prepare The Design

Create your logo, text, or artwork in software like Adobe Illustrator or CorelDRAW.
Convert the file to a vector format (such as SVG) for sharper, cleaner results.

2. Follow Basic Safety Steps

Wear laser safety goggles matched to your machine’s wavelength.
Make sure the workspace has proper ventilation.

3. Clean And Set Up the Machine

Wipe the gold surface to remove oils or dust.
Turn on the laser system and load your design file.

4. Position The Gold Item

Place the piece securely on the engraving bed.
Use the red dot guide or the camera preview to center the design accurately.

5. Focus The Laser

Adjust the focus so the beam hits the surface precisely.
Proper focus ensures crisp lines and prevents uneven marks.

6. Adjust Laser Settings

Power: Start low to avoid excess melting.
Speed: Moderate speed allows clean marking.
Frequency: Higher frequency helps create a smoother finish.

7. Run A Test Pass

Test on a similar metal piece or a hidden area first.
Fine-tune settings if needed.

8. Final Engraving And Cleaning

Run the final engraving once settings are confirmed.
Clean the piece with a jewelry cleaner or mild solution to remove residue.

Pro Tip: Check the exact gold alloy before setting parameters. Pure gold and lower-karat alloys respond differently to heat, so confirming the karat level lets you fine-tune power and frequency for cleaner, more controlled results.

Laser engraving process on gold jewelry piece

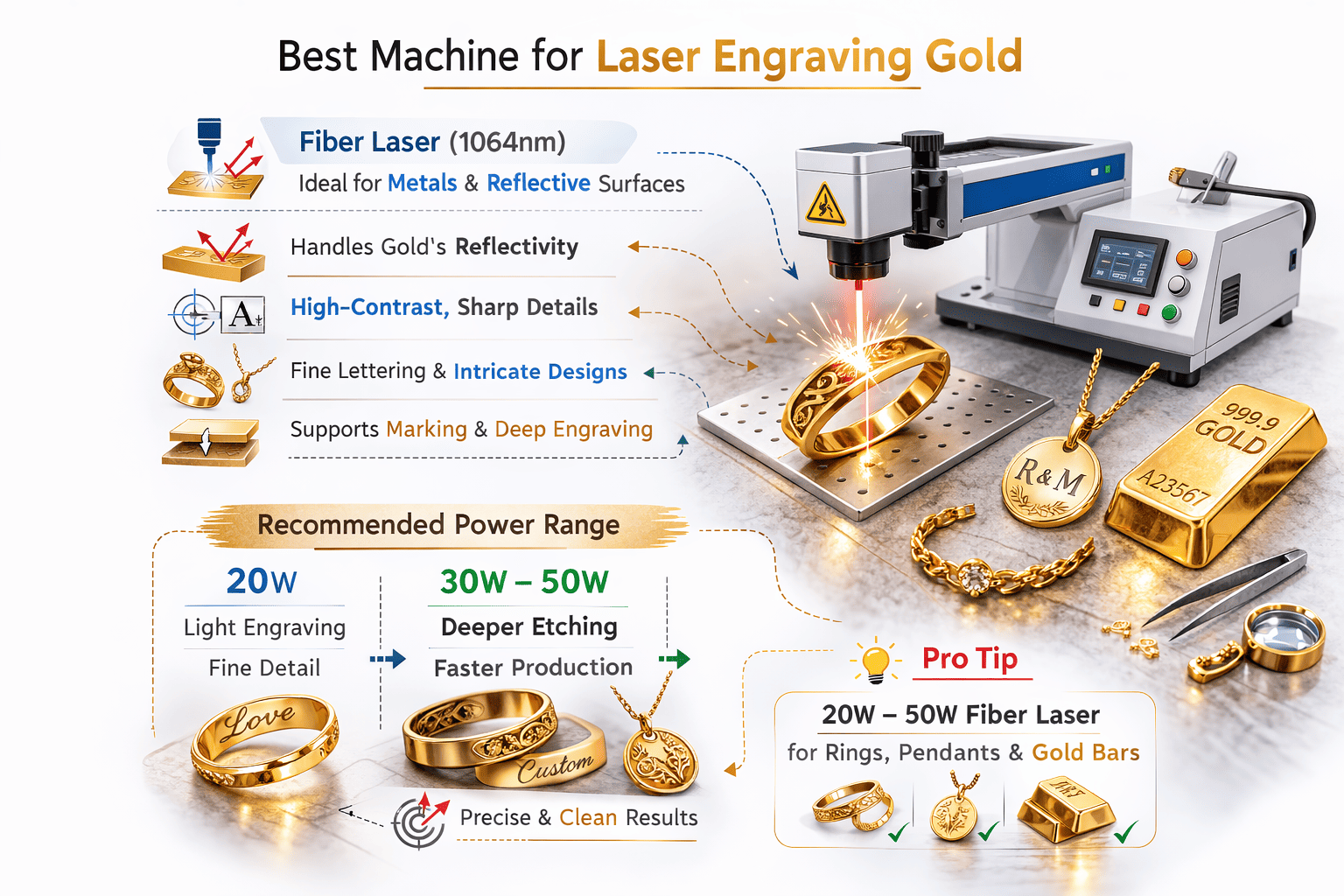

Best Machine For Laser Engraving Gold

The best laser for engraving gold is a Fiber Deep Engraving Laser Machine. It’s specifically suited for metals and delivers clean, high-contrast results on reflective surfaces like gold.

Why Fiber Lasers Work Best

1064nm wavelength: This wavelength is well-suited for engraving precious metals.
Handles reflectivity better: Gold reflects a lot of infrared light, and Fiber Deep Engraving Lasers are designed to handle it efficiently.
Sharp, detailed output: Ideal for fine lettering, logos, and intricate jewelry work.
Supports both marking and deep engraving: Adjust settings for surface contrast or deeper cuts.

Recommended Power Range

For professional jewelry applications:

20W fiber laser: Suitable for light engraving and fine detail work.
30W–50W fiber laser: Better for deeper etching and faster production without affecting surrounding areas.

Pro Tip: If you’re working with rings, pendants, or gold bars, a 20W to 50W fiber laser offers the control and precision needed for consistent results.

Fiber laser machine engraving gold jewelry

Laser Engraving Gold: Common Issues & Fixes

Laser engraving gold can present a few challenges, especially because it reflects and conducts heat quickly. Here are the most common issues and how to correct them.

Melting or ‘Spongy’ Edges

Gold may melt and re-harden rather than engrave cleanly.
Fix: Lower the power, increase speed slightly, and use a properly calibrated fiber laser for better control.

Poor Contrast

Bright gold makes dark marks harder to see.
Fix: Adjust frequency settings, slow the speed slightly, or use marking spray when appropriate.

Damage to Gold Plating

Thin plating can burn through and expose the base metal.
Fix: Use minimal power and test on a hidden area first.

Uneven or Blurry Depth

Incorrect focus or uneven surfaces cause inconsistent results.
Fix: Recheck focus height and ensure the surface is level.

Heat Discoloration or Warping

Excessive power or slow speed builds up heat.
Fix: Fine-tune settings to reduce thermal buildup.

Misaligned Designs

Movement during engraving can cause the artwork to shift.
Fix: Secure the piece firmly before starting.

Quick Recap!

Laser engraving gold creates permanent, precise surface designs.
The Fiber Deep Engraving Laser Machine is the best laser for engraving gold.
Proper focus and secure positioning are critical.
Start with low power and moderate speed to control heat.
Run a test pass before final engraving.
Adjust settings to avoid melting, poor contrast, or uneven depth.
Clean the piece after engraving for a polished finish.

Now, explore our full range of products designed to meet diverse industrial requirements.

Frequently Asked Questions

1. Can all types of gold be laser-engraved?

Yes. Solid gold, most gold alloys, and even gold-plated items can be laser-engraved, though settings must vary depending on karat and thickness.

2. Does laser engraving reduce the value of gold jewelry?

It depends. In most cases, engraving does not significantly affect value, especially for personal or custom pieces. However, heavy engraving may affect the resale value of bullion items, such as gold bars or coins.

3. How deep can a laser engrave into gold?

Depth depends on machine power and settings. Fiber lasers can produce both shallow markings and deeper engravings when properly calibrated.

4. Is laser-engraved gold better than mechanical engraving?

It depends. Laser engraving offers higher precision and repeatability, while mechanical engraving may create a more traditional carved look.

5. Can you remove laser engraving from gold?

Yes, but it typically requires polishing or surface refinishing, which may slightly alter the item’s thickness or finish.

6. What safety precautions should you follow when laser engraving gold?

Always wear laser safety goggles matched to your machine’s wavelength and ensure proper ventilation in your workspace. Secure small gold items firmly to prevent movement, and avoid direct exposure to the laser beam during operation.
